Mechanical Seal Manufacturer in Saudi Arabia

Mechanical Seal Manufacturer and Supplier in Saudi Arabia, Middle East.

Quantech Seal Manufacturing LLC is the leading Mechanical Seals Manufacturer and Supplier in Saudi Arabia. Leaking pipes and equipment have long been a thorn in the side of the engineering sector in Saudi Arabia. The constant need for repairs and maintenance has not only been costly but also a major hindrance to productivity. However, a revolutionary solution has emerged in the form of mechanical seals. These innovative devices are changing the game for industrial companies by effectively preventing leaks and ensuring smooth operations. In this article, we will explore how mechanical seals are revolutionizing Saudi Arabia's engineering sector, providing a long-term solution to the age-old problem of leaks. From their advanced design to their ability to withstand extreme conditions, we will delve into the benefits and advantages of using mechanical seals. Join us as we uncover the transformative power of these game-changing devices and how they are reshaping the landscape of the engineering industry in Saudi Arabia.

The Importance of Addressing Industrial Leaks in Saudi Arabia

Saudi Arabia's engineering sector plays a crucial role in the country's economy, with industries such as oil and gas, petrochemicals, and manufacturing driving growth and development. However, these industries often face significant challenges due to leaks in their pipelines and equipment. Leaks not only lead to substantial financial losses but also pose serious safety and environmental risks. The need for constant repairs and maintenance to address leaks has been a major burden on companies, impacting their profitability and overall efficiency.

The Role of Mechanical Seals in Preventing Leaks

Mechanical seals have emerged as a game-changing solution to the problem of industrial leaks in Saudi Arabia. These seals are designed to provide a tight and reliable barrier between the rotating and stationary parts of machinery, preventing the escape of fluids and gases. Unlike traditional packing seals, mechanical seals offer superior performance and durability. They are typically made of high-quality materials, such as carbon, ceramic, and stainless steel, which ensure their ability to withstand extreme conditions and resist corrosion. The unique design of mechanical seals allows them to maintain a tight seal even under high pressures and temperatures, making them ideal for demanding industrial applications.

Mechanical seals work by creating a seal between two surfaces using a combination of mechanical force and fluid pressure. They consist of two primary components: a stationary seal face and a rotating seal face. When the equipment is in operation, the rotating face moves against the stationary face, creating a seal that prevents leakage. The seal faces are held together by a set of springs, which ensure constant contact and optimal sealing performance. In addition to their primary sealing function, mechanical seals also serve as a barrier against contaminants, such as dirt and debris, further enhancing their reliability and longevity.

Advantages of Using Mechanical Seals in the Engineering Sector

The adoption of mechanical seals in the engineering sector in Saudi Arabia has brought about numerous benefits and advantages. Firstly, mechanical seals offer superior leakage prevention compared to traditional packing seals. Their advanced design and materials provide a higher level of sealing performance, minimizing the risk of leaks and reducing the need for frequent repairs and maintenance. This translates to significant cost savings for companies, as they can allocate their resources more efficiently and focus on core operations.

Secondly, mechanical seals are highly versatile and can be customized to suit specific applications. Different industries and equipment have unique requirements, and mechanical seals can be designed to meet those specific needs. Whether it's high pressure, high temperature, corrosive fluids, or abrasive particles, mechanical seals can be engineered to withstand and perform under challenging conditions. This adaptability makes them a reliable choice for a wide range of applications in Saudi Arabia's engineering sector.

Thirdly, mechanical seals contribute to improved safety and environmental protection. By preventing leaks, these seals help to minimize the risk of accidents, such as spills and releases of hazardous substances. This not only protects the well-being of workers but also safeguards the surrounding environment. With stricter regulations and a growing focus on sustainability, the use of mechanical seals aligns with Saudi Arabia's commitment to responsible industrial practices.

Types of Mechanical Seals Commonly Used in Saudi Arabia

In Saudi Arabia's engineering sector, several types of mechanical seals are commonly used, each with its unique features and advantages. The choice of mechanical seal depends on factors such as the type of equipment, operating conditions, and the fluid being sealed. Some of the commonly used mechanical seals include:

1. Single Mechanical Seals: Single mechanical seals are the most basic type of seal and consist of a single set of seal faces. They are suitable for applications with low to moderate pressures and temperatures.

2. Double Mechanical Seals: Double mechanical seals provide an extra layer of protection by incorporating two sets of seal faces. They are often used in applications where leakage is not tolerated, such as in critical processes or when handling hazardous fluids.

3. Cartridge Mechanical Seals: Cartridge mechanical seals are pre-assembled units that are easy to install and replace. They offer convenience and reduce the risk of improper installation, ensuring optimal sealing performance.

4. Split Mechanical Seals: Split mechanical seals are designed for applications where the equipment cannot be disassembled. They consist of two halves that can be installed without the need for equipment disassembly, saving time and reducing downtime.

Case Studies of Successful Leak Prevention Using Mechanical Seals

Several case studies in Saudi Arabia's engineering sector have demonstrated the effectiveness of mechanical seals in preventing leaks and improving overall efficiency. One such case involved a petrochemical company that was experiencing frequent leaks in their pumps, resulting in extensive downtime and high maintenance costs. After implementing mechanical seals, the company observed a significant reduction in leaks, leading to improved productivity and cost savings. The reliability and durability of the mechanical seals allowed the company to focus on their operations without the constant interruption of repairs.

Another case study involved an oil refinery that was facing challenges with leakage in their pipeline systems. By replacing their traditional packing seals with mechanical seals, the refinery was able to eliminate leaks, ensuring the safe and efficient transport of oil. The mechanical seals' ability to withstand extreme temperatures and pressure fluctuations proved to be crucial in maintaining the integrity of the pipeline systems.

Factors to Consider When Choosing Mechanical Seals for Specific Applications

When selecting mechanical seals for specific applications in Saudi Arabia's engineering sector, several factors need to be considered to ensure optimal performance and longevity. These factors include:

1. Operating Conditions: It is essential to consider factors such as temperature, pressure, and speed to determine the appropriate type of mechanical seal for a given application.

2. Fluid Compatibility: The compatibility of the seal materials with the fluid being sealed is crucial. Certain fluids may require specific materials to ensure compatibility and prevent chemical reactions that could compromise the seal's integrity.

3. Equipment Design: The design of the equipment and the available space for installation should be taken into account. Cartridge mechanical seals or split mechanical seals may be preferred in situations where equipment disassembly is challenging.

4. Maintenance Requirements: Consideration should be given to the ease of maintenance and the availability of spare parts. Mechanical seals that are easy to maintain and have readily available spare parts reduce downtime and ensure continuous operations.

Maintenance and Troubleshooting Tips for Mechanical Seals

To maximize the lifespan and performance of mechanical seals, regular maintenance and troubleshooting are essential. Here are some tips to ensure optimal performance:

1. Proper Installation: Mechanical seals should be installed according to the manufacturer's instructions. This includes ensuring the correct alignment and torque settings.

2. Regular Inspections: Regular inspections can help identify potential issues before they escalate. Inspecting seal faces, springs, and other components for wear or damage is crucial for early detection and prevention of leaks.

3. Proper Lubrication: Adequate lubrication is necessary to reduce friction and extend the life of the mechanical seal. Using the recommended lubricants and following the manufacturer's guidelines is important.

4. Prompt Repair of Leaks: If a leak is detected, it should be addressed promptly. Ignoring leaks can lead to further damage and costly repairs.

The Future of Mechanical Seals in Saudi Arabia's Engineering Sector

As Saudi Arabia's engineering sector continues to grow and evolve, the demand for reliable and efficient sealing solutions will only increase. Mechanical seals are expected to play a crucial role in meeting these demands. Advancements in materials, design, and manufacturing processes will lead to even more robust and high-performance mechanical seals. Additionally, the integration of smart technologies, such as condition monitoring and predictive maintenance, will further enhance the reliability and efficiency of mechanical seals.

Conclusion

Mechanical seals have emerged as a game-changing solution to the age-old problem of industrial leaks in Saudi Arabia's engineering sector. These innovative devices provide a long-term and cost-effective solution, preventing leaks and ensuring smooth operations. With their advanced design, ability to withstand extreme conditions, and versatility, mechanical seals offer numerous benefits and advantages. By adopting mechanical seals, companies in Saudi Arabia can improve productivity, reduce maintenance costs, and enhance safety and environmental protection. As the engineering industry continues to evolve, mechanical seals are poised to revolutionize the sector, reshaping the landscape and driving growth and innovation.

Quantech Seal Manufacturing LLC is a mechanical seal manufacturer and supplier in Saudi Arabia. We produce a wide range of mechanical seal products for various industries such as papermaking, chemical engineering, oil refining, machinery manufacturing, pharmaceuticals, food processing, etc.,. Our products include Single Coil Seals, Multi Spring Seals, Conical Spring Seals, Reverse Balanced Seals, Rubber Bellow Seals, Single Acting Seals, Teflon Bellow Seals, Metal Bellow Seals, Wave Spring Seals, Single Cartridge Seals, Double Cartridge Seals, Dry Seals, Reactor Seals, Agitator Seals etc.,. We export our products to various countries such as UAE, Egypt, Pakistan, West Africa, Nigeria, Oman, India, Singapore, China, Sri Lanka, Qatar, Ukrain, etc.


Single Coil Seal
Single Coil Mechanical Seal

Single Coil Seal

Multi Coil Seal
Multi Coil Seal

Multi Coil Seal

Bellow Type Mechanical Seal
Bellow Type Mechanical Seal

Bellow Type Seal

Wave Spring Mechanical Seal
Wave Spring Mechanical Seal

Wave Spring Seal

Cartridges Mechanical Seal
Cartridges Mechanical Seal

Cartridges Seal

Reactor Mechanical Seal
Reactor Mechanical Seal

Reactor Seal



Mechanical Seal manufacturers in Dubai


SINGLE COIL MECHANICAL SEAL

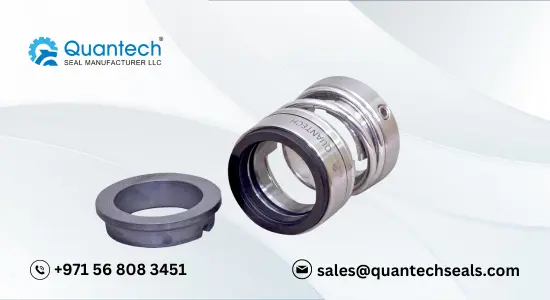

S1 - Single Coil Seal, bidirectional, clutch type seal, unbalanced

SINGLE COIL MECHANICAL SEAL


Size 20-100mm Pressure Up to 12kg/cm2
Temperature −20°C to 200°C Faces Car, Si, TC
Sec Seals FKM, EPDM, PTFE, NBR Metal Parts SS316, SS316L, SS304, Alloy20, Hast-C
Application Slurry Pumps, Refineries, Petro Chemicals, General Chemicals

S2 - Single Coil Seal, Conical Spring, unbalanced

SINGLE COIL MECHANICAL SEAL


Size 10-100mm Pressure Up to 8kg/cm2
Temperature −20°C to 150°C Faces Car, Si, TC, SS
Sec Seals FKM, EPDM, PTFE, NBR Metal Parts SS316, SS316L, SS304, Alloy20, Hast-C
Application Water, Solvents, General Chemicals, Clear Liquids

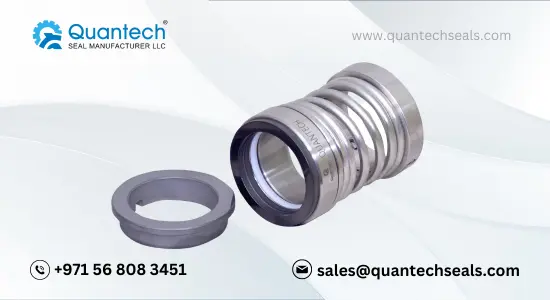

S3 - Single Coil Seal, Inside Mounted, Unbalanced

SINGLE COIL MECHANICAL SEAL


Size 20-100mm Pressure Up to 10kg/cm2
Temperature −20°C to 200°C Faces Carbon, Si, TC
Sec Seals FKM, EPDM, NBR Metal Parts SS316, SS316L, SS304
Application Refineries, Fertilizer, Slight Slurry, Water

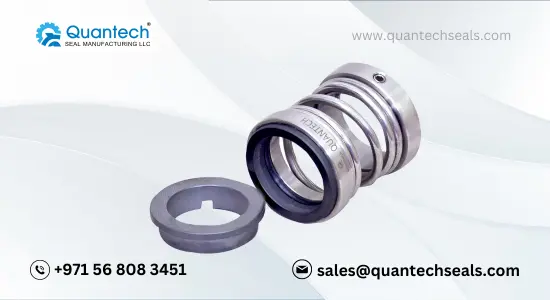

S4 - Single Coil Seal, Inside Mounted, Unbalanced

SINGLE COIL MECHANICAL SEAL


Size 20-100mm Pressure Up to 10kg/cm2
Temperature −20°C to 200°C Faces Carbon, Si, TC
Sec Seals FKM, EPDM, NBR Metal Parts SS316, SS316L, SS304
Application Refineries, Fertilizer, Slight Slurry, Water

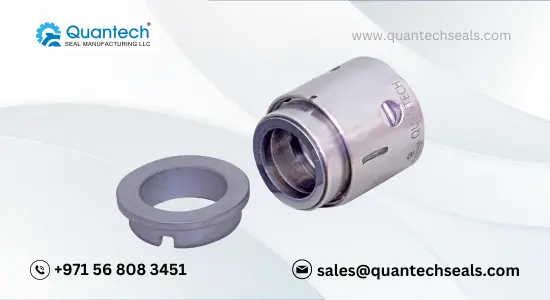

S5 - Single Coil Seal, Inside Mounted, Unbalanced

SINGLE COIL MECHANICAL SEAL


Size 16-100mm Pressure Up to 8kg/cm2
Temperature −20°C to 150°C Faces Carbon, Si, TC
Sec Seals FKM, EPDM, NBR, PTFE Metal Parts SS316, SS316L, SS304
Application Chemical, Paper Industry, Water Treatment, Oil

MULTI COIL MECHANICAL SEAL

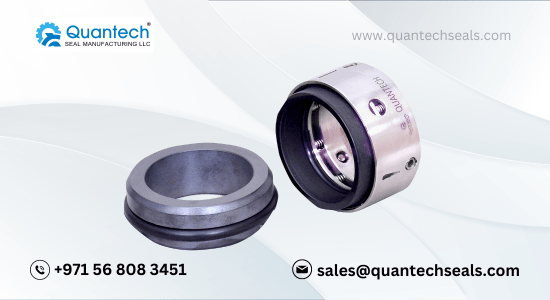

M1 - Multi Coil, Unbalanced, Bi-directional

MULTI COIL MECHANICAL SEAL


Size 20-150mm Pressure Up to 10kg/cm2
Temperature −20°C to 200°C Faces Carbon, Si, TC
Sec Seals FKM, EPDM, NBR, PTFE Metal Parts SS316, SS316L, SS304, Alloy20, Hast-C
Application Petrochemicals, General Chemicals, Clear Liquids, Light Hydrocarbon

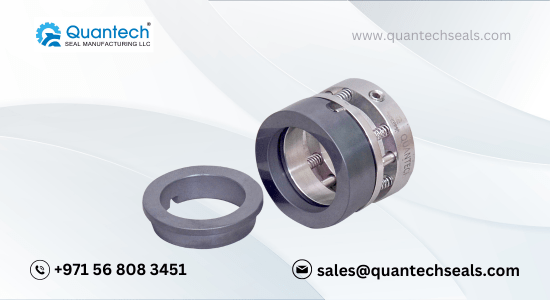

M2 - Multi Spring, Inside Mounted, Unbalanced

MULTI COIL MECHANICAL SEAL


Size 16-140mm Pressure Up to 10kg/cm2
Temperature −20°C to 200°C Faces Carbon, Si, TC
Sec Seals FKM, EPDM, NBR, PTFE Metal Parts SS316, SS316L, SS304, Alloy20, Hast-C
Application Water Solvents, Clear Liquids

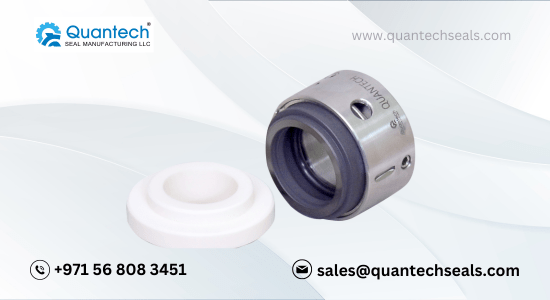

M3 - Multi Spring, Inside Mounted, Unbalanced

MULTI COIL MECHANICAL SEAL


Size 20-100mm Pressure Up to 10kg/cm2 vacuum
Temperature −20°C to 150°C Faces Carbon, Si, TC
Sec Seals FKM, EPDM, NBR, PTFE Metal Parts SS316, SS316L, SS304, Alloy20, Hast-C
Application Corrosive Chemicals, Salt Slurries, Abrasive Products

M4 - Multi Spring, Balanced, Inside Mounted, Bi-directional

MULTI COIL MECHANICAL SEAL


Size 20-100mm Pressure Up to 38kg/cm2
Temperature −20°C to 250°C Faces Carbon, Si, TC
Sec Seals FKM, EPDM, NBR, PTFE, FFKM Metal Parts SS316, SS316L, SS304, Alloy20, Hast-C
Application Petro Chemicals, General chemicals

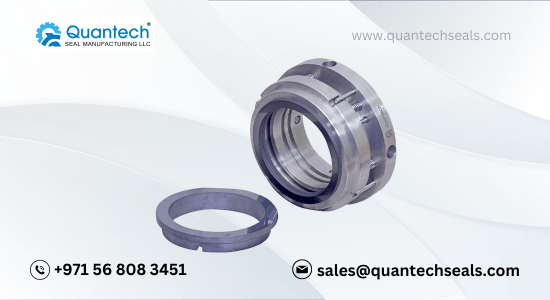

M5 - Multi Spring, Reverse Balanced, Outside Mounted, Bi-directional

MULTI COIL MECHANICAL SEAL


Size 25-150mm Pressure Up to 15kg/cm2
Temperature −20°C to 250°C Faces Carbon, Si, TC
Sec Seals FKM, EPDM, NBR, PTFE Metal Parts SS316, SS316L, SS304, Alloy20, Hast-C
Application Pharma Industries, Food Products, Chemical Industry

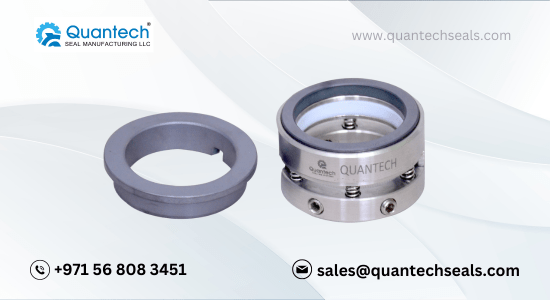

M6 - Multi Spring, unBalanced, Bi-directional

MULTI COIL MECHANICAL SEAL


Size 20-50mm Pressure Up to 10kg/cm2
Temperature −20°C to 150°C Faces Si, TC
Sec Seals FKM, EPDM, NBR, PTFE Metal Parts SS316, SS316L, SS304, Alloy20, Hast-C
Application Water Treatment Plant, Chemical, Clear Water

BELLOW TYPE MECHANICAL SEAL

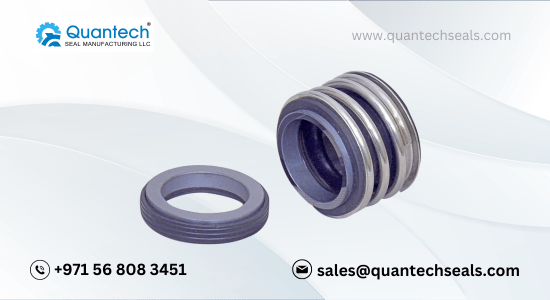

B1 - Single Acting, Unbalanced, Rubber Bellow Transmission

MULTI COIL MECHANICAL SEAL


Size 10-100mm Pressure Up to 10kg/cm2
Temperature −20°C to 100°C Faces C, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS304, SS316
Application Water Sewage Pumps, Oil Coolant Pumps, Agriculture

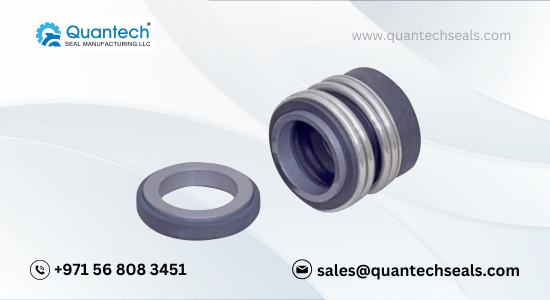

B2 - Single Acting, Unbalanced, Rubber Bellow Transmission

MULTI COIL MECHANICAL SEAL


Size 10-100mm Pressure Up to 10kg/cm2
Temperature −20°C to 100°C Faces C, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS304, SS316
Application Water Sewage Pumps, Oil Coolant Pumps, Agriculture

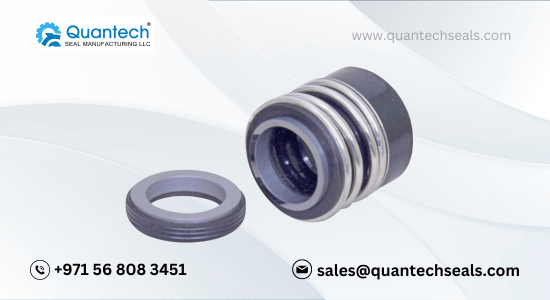

B3 - Single Acting, Unbalanced, Rubber Bellow Transmission

MULTI COIL MECHANICAL SEAL


Size 10-100mm Pressure Up to 10kg/cm2
Temperature −20°C to 100°C Faces C, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS304, SS316
Application Water Sewage Pumps, Oil Coolant Pumps, Agriculture

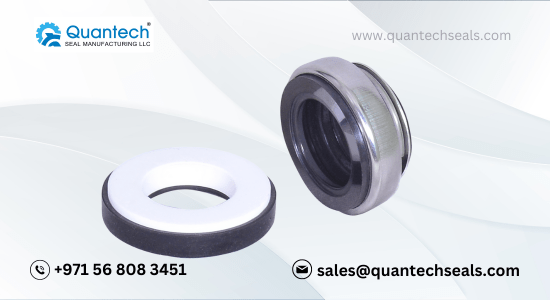

B4 - Single Acting, Inside Mounted, Rubber Bellow

MULTI COIL MECHANICAL SEAL


Size 6-70mm Pressure Up to 5kg/cm2
Temperature −20°C to 100°C Faces C, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS304
Application Water, Oil, Agriculture, coolant pumps

B5 - Outside Mounted, Reverse Balanced, Teflon Bellow

MULTI COIL MECHANICAL SEAL


Size 25-100mm Pressure Up to 5kg/cm2
Temperature −20°C to 100°C Faces GFT, Sic, TC
Sec Seals PTFE Metal Parts SS304, SS316
Application Extremely Corrosive Liquids, Hydrochloric Acid, Sulphuric Acid, Phosphorus Acid

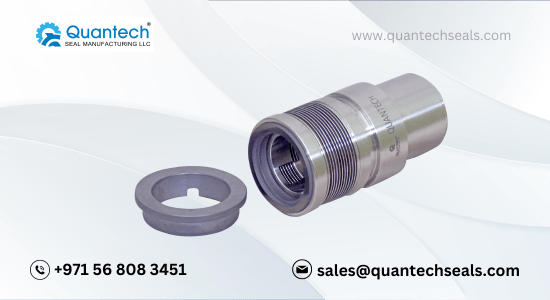

B6 - Single Acting, Inside Mounted, Metal Bellow, Inherently Balanced

MULTI COIL MECHANICAL SEAL


Size 25-350mm Pressure Up to 20kg/cm2
Temperature −20°C to 100°C Faces Carbon, Si, TC
Sec Seals Graffite, FKM, PTFE, FFKM Metal Parts SS316, SS316L, SS304, AM350
Application Thermic Fluid, Petro Chemicals, General Chemicals, Hydrocarbon

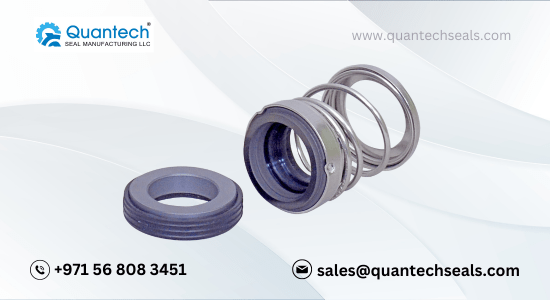

B7 - Single Acting, Inside Mounted, Rubber Bellow

MULTI COIL MECHANICAL SEAL


Size 12-70mm Pressure Up to 5kg/cm2
Temperature −20°C to 100°C Faces Carbon, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS316, SS304
Application Water, Oil, Light Liquids

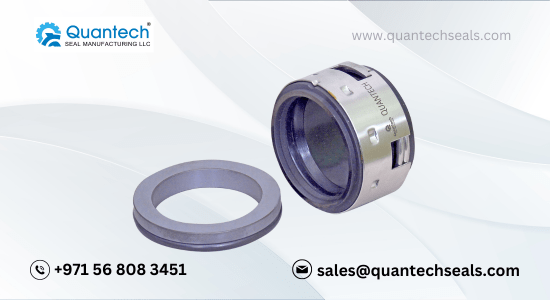

B8 - Single Acting, Inside Mounted, Rubber Bellow

MULTI COIL MECHANICAL SEAL


Size 14-100mm Pressure Up to 15kg/cm2
Temperature −20°C to 100°C Faces Carbon, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS316, SS304
Application Water, Oil, Light Liquids

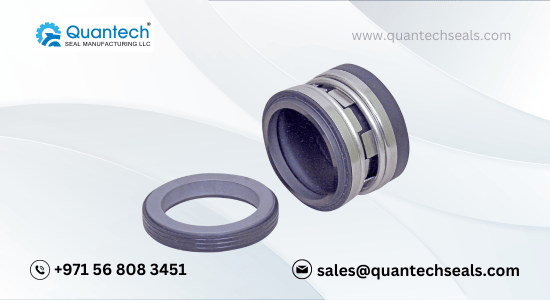

B9 - Single Acting, Inside Mounted, Rubber Bellow, Bidirectional

MULTI COIL MECHANICAL SEAL


Size 12-100mm Pressure Up to 12kg/cm2
Temperature −20°C to 100°C Faces Carbon, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS316, SS304
Application Water, Oil, Light Liquids, Sewage

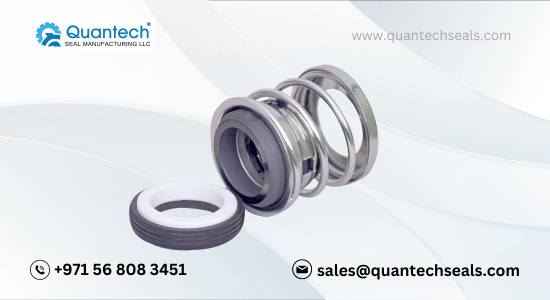

B10 - Single Acting, Inside Mounted, Rubber Bellow

MULTI COIL MECHANICAL SEAL


Size 12-70mm Pressure Up to 5kg/cm2
Temperature −20°C to 100°C Faces Carbon, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS316, SS304
Application Water, Oil, Light Liquids

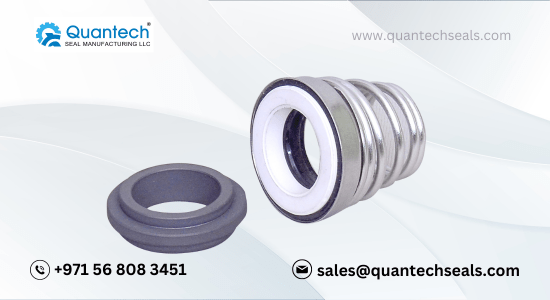

B11 - Single Acting, Inside Mounted, Rubber Bellow

MULTI COIL MECHANICAL SEAL


Size 10-50mm Pressure Up to 5kg/cm2
Temperature −20°C to 80°C Faces Carbon, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS316, SS304
Application Water, Oil, Light Liquids

WAVE SPRING MECHANICAL SEAL

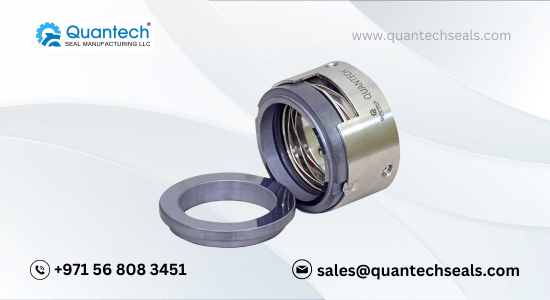

W1 - Wave Spring, Inside Mounted, Unbalanced

Wave Spring MECHANICAL SEAL


Size 14-200mm Pressure Up to 10kg/cm2
Temperature −0°C to 200°C Faces Carbon, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS316L, SS316, SS304, Alloy20, Hast-C
Application Water, Solvents, General Chemicals, Paper and Pulp

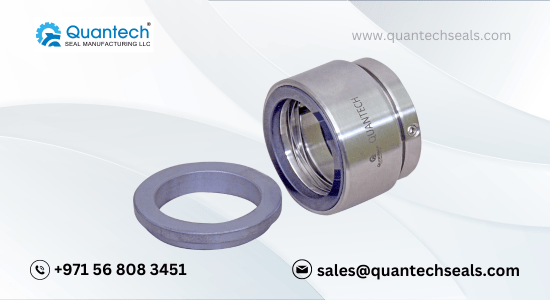

W2 - Wave Spring, Single Acting, Inside Mounted, Unbalanced

Wave Spring MECHANICAL SEAL


Size 25-100mm Pressure Up to 15kg/cm2
Temperature −0°C to 200°C Faces Carbon, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS316L, SS316, SS304, Alloy20, Hast-C
Application Oil, Water, Solvents, Paper and Pulp

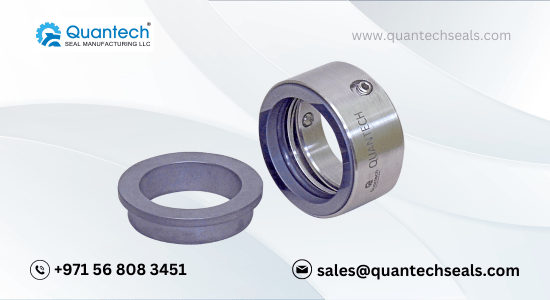

W3 - Wave Spring, Single Acting, Inside Mounted, Unbalanced

Wave Spring MECHANICAL SEAL


Size 25-100mm Pressure Up to 10kg/cm2
Temperature −0°C to 200°C Faces Carbon, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS316L, SS316, SS304, Alloy20, Hast-C
Application Food, Oil, Water, Solvents, Pharmaceutical

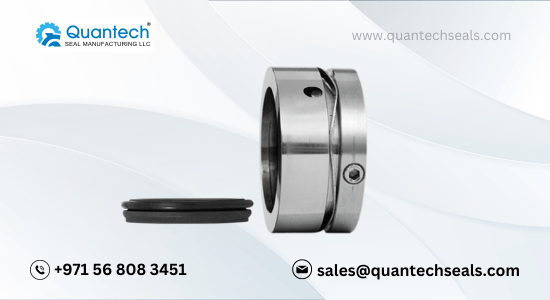

W4 - Wave Spring, Single Acting, Inside Mounted, Unbalanced

Wave Spring MECHANICAL SEAL


Size 25-70mm Pressure Up to 10kg/cm2
Temperature −20°C to 100°C Faces C, Si, TC
Sec Seals FKM, NBR, EPDM Metal Parts SS316L, SS316, SS304, Alloy20, Hast-C
Application Oil, Water, General Chemicals

CARTRIDGE MECHANICAL SEAL

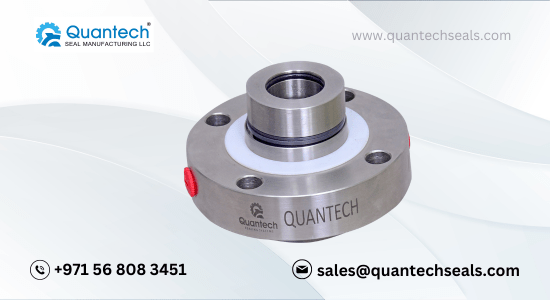

C1 - Single Acting, Multi Spring with spring outside the product

Wave Spring MECHANICAL SEAL


Size 20-100mm Pressure Up to 30kg/cm2
Temperature −20°C to 220°C Faces Car, Si, TC
Sec Seals FKM, NBR, EPDM, PTFE Metal Parts SS316L, SS316, SS304, Alloy20, Hast-C
Application Slurry, High Pressure, Chemicals

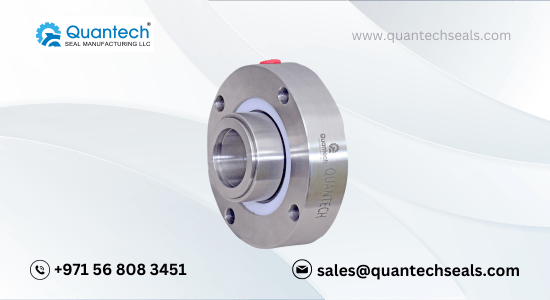

C2 - Single Acting, Multi Spring

Wave Spring MECHANICAL SEAL


Size 20-100mm Pressure Up to 20kg/cm2
Temperature −20°C to 220°C Faces Car, Si, TC
Sec Seals FKM, NBR, EPDM, PTFE Metal Parts SS316L, SS316, SS304, Alloy20, Hast-C
Application Pulp, Paper Sludge, Chemicals, Petrochemicals, Refineries

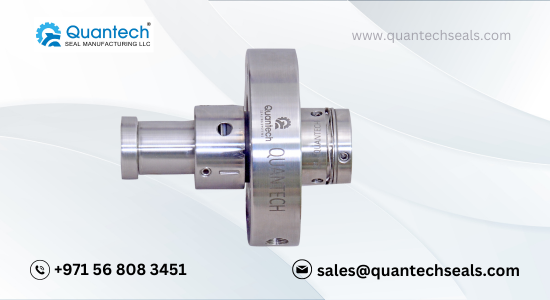

C3 - Double Cartridge Seal

Wave Spring MECHANICAL SEAL


Size 20-100mm Pressure Up to 35kg/cm2
Temperature −20°C to 260°C Faces Car, Si, TC
Sec Seals FKM Metal Parts SS316L, SS316, SS304, Alloy20, Hast-C
Application Slurry Pumps, Pulp and Paper, Chemical, Parametrical, Petrochemicals, Refineries

C4 - Double Seal for Reactor and Agitation

Wave Spring MECHANICAL SEAL


Size 30-150mm Pressure Up to 40kg/cm2 vacuum
Temperature −20°C to 280°C Faces Car, Si, TC, Ceramic
Sec Seals FKM Metal Parts SS316L, SS316, SS304, Alloy20, Hast-C
Application Slurry Pumps, Pulp and Paper, Chemical, Parametrical, Petrochemicals, Refineries

Mechanical Seal Manufacturer in Dubai, UAE.

If you are looking for Mechanical Seal Manufacturer in Dubai, United Arab Emirates. Quantech Seal LLC is the right choice for you. We measure your specific performance requirements and budget you need. For a detailed price quote, please call +971 50 39 15 144 or email: sales@quantechseals.com. Our team experts will help you with the latest products and standards ensures the best possible Mechanical Seal for your applications.


We stock all types of Mechanical Seals in Dubai

Quantech Seal Manufacturing LLC is leading Mechanical Seals Manufacturer in Dubai, and supplying all types of Mechanical Seals to our clients in all over UAE (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), and Middle East. Get a Best Quote Now!
